Air Separation Units & Nitrogen Plants

AIR SEPARATION UNITS & NITROGEN PLANTS

Ensuring Gas Purity with CRDS Technology

Gas purity monitoring is crucial in air separation units and nitrogen plants, where the implementation of Cavity Ring-Down Spectroscopy (CRDS) gas analysis technology has proven invaluable. This innovative technology facilitates real-time monitoring of oxygen, nitrogen, and other gas streams, ensuring the achievement of desired purity levels.

Real-Time Monitoring and Quality Control

CRDS gas analysis technology enables the detection and measurement of impurities such as:
  • Water vapor
  • Carbon dioxide
  • Hydrocarbons
By monitoring gas purity in real-time, operators can:
  • Promptly identify deviations from specifications
  • Make necessary process adjustments
  • Ensure the end product meets required purity standards

Applications in Nitrogen Plants

In nitrogen plants, CRDS technology plays a critical role in monitoring the purity of produced nitrogen gas. This technology detects and measures impurities such as:
  • Oxygen
  • Carbon dioxide
  • Moisture

Proven Track Record of our TIGER OPTICS CRDS Gas Analyzers

For decades, our TIGER OPTICS CRDS gas analyzers have established a reputation for excellence in various industries, including:
  • Industrial gas
  • Medical gas
  • Chemical processing
These analyzers have successfully enabled the detection of moisture and other rogue impurities in process gas streams, including:
  • Inert gases
  • Reactive gases
  • Corrosive gases
  • Bulk gases
  • Specialty gases

For decades, our TIGER OPTICS™ Cavity Ring-Down Spectroscopy (CRDS) gas analyzers have had a long history in industrial gas, medical gas, and chemical processing enabling detection of moisture and other rogue impurities in process gas streams, including inert, reactive, corrosive, bulk and specialty gases.

  • Air Separation Units – Process control, quality control, safety, and compliance, trace analyzers for H2O, O2, CH4, CO2, CO, H2, C2H2, and more for ppb to % level detection capability.
  • Electronic Gas – Bulk gas continuous quality control monitoring (CQC) trace gas analyzers for H2O, O2, H2, CH4, NH3, CO, CO2, N2, and more.
  • Specialty Gases – Moisture impurity monitoring in welding gases, and specialty gases including corrosive (HCl, HBr, Cl2), rare gases (Xe, Kr, He, Ne), fluorinated gases, (SF6, NF3, CF4), hydrides (NH3, PH3, GeH4, AsH3), and pure CO2.
  • Labs, Safety and Compliance – Trace gas analyzers for H2O, O2, H2, CH4, NH3, CO, CO2, and more.
  • Hydrogen / Syngas – HyCO process control, hydrogen purity analysis, feed forward control, and flare gas analysis, gas analyzers for H2O, CO, CO2, H2, N2, CH4, H2S and more.

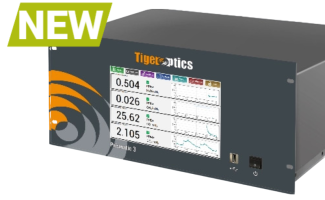

PRISMATIC 3+ MULTI-SPECIES CRDS GAS ANALYZER

Introducing the TIGER OPTICS Prismatic 3+™ Multi-Species CRDS Gas AnalyzerWith detection limits as low as 3ppb, our Prismatic 3+ Cavity Ring-Down Spectroscopy (CRDS) analyzers will reduce downtime and save money on preventative maintenance that is typically required by other technologies. The Prismatic 3+ laser-based, multi-species analyzer offers up to 4 analytes (H2O, CO, CO2 & CH4)providing measurements in seconds without the need for periodic calibration. It’s simple to install and operate and perfect for unmanned applications.

APPLICATIONS

  • Air Separation Units for Electronic Gases
  • Truck Fill
  • Pre-Purifier Bulk Gas Monitoring
  • Unmanned Operations
  • Gas Quality Control
  • Hydrogen Fuel Cells
  • Research & Development


For Critical Impurities in Bulk Electronic Gases

Extrel™ VeraSpec™ APIMS

Semiconductor manufacturers need the ability to continuously verify the purity of process gases in real-time and detect trace contamination at concentrations in the low parts-per-trillion (ppt).  Monitor a wide range of gases and gas mixtures with the stability that provides the long-term repeatability required in most applications.

Our NEW EXTREL™ VeraSpec™ Atmospheric Pressure Ionization Mass Spectrometer (APIMS) is designed for reliable and repeatable low parts-per-trillion detection limits for contamination control in Ultra-High Purity (UHP) gases used in semiconductor and other high-tech industrial applications.

VerSpec APIMS Benefits Include:

  • Industry-best lower detection limits (LDLs) for bulk gas analysis
  • Real-time, multi-species monitoring for ALL critical Impurities in bulk gases including trace O2, H2, H2O, CH4, CO, CO2, Xe and more
  • Well-established, powerful mass spectrometry technology
  • Unparalleled measurement range from PPT to 100% with unique dual-source ionization configuration
