Optical Absorption Spectroscopy

Optical Absorption Spectroscopy

NIR & UV-VIS Process & Lab Analyzers

Our GUIDED WAVE™ NIR-UV-VIS process analyzer spectrometers offer remote multichannel extended range near-infrared (1000-2100nm) spectroscopic analysis. They provide excellent signal-to-noise ratio, wavelength stability, NIST traceable wavelength calibration, dual beam optics and built-in diagnostics. Process engineers, operators, and researchers will appreciate their ability to monitor up to 12 process streams or sample interface points within a stream with accuracy, repeatability, and reliability.

WHY NIR SPECTROSCOPY IS BETTER THAN GAS CHROMATOGRAPHY?

Near-infrared (NIR) spectroscopy is a non-destructive technique that can provide fast, accurate results of process conditions. NIR Spectroscopy is able to achieve real-time monitoring of multiple constituents in the process by illuminating the sample with light and analyzing how the light interacts with the sample.  Spectroscopy achieves this without the high maintenance costs or the extensive upkeep considerations typically associated with gas chromatography (GC). Additionally, optical technology often eliminates the costly sample systems and fast loops needed for process gas chromatography.

WHY USE NIR SPECTROSCOPY?

Traditionally, absorption spectroscopy has been used in laboratories to perform precise analyses. For production environments, a very robust portion of the electromagnetic spectrum—UV/Vis/NIR—emerged for process analytics.

OUR NIR-UV-VIS PROCESS & LAB ANALYZERS SOLUTIONS DELIVER

  • Improved reliability
  • Rapid analysis
  • Low cost of ownership
  • Meet compliance requirements
  • Backed by global service and support

We offer many high performance, affordable, turnkey solutions for your application.  Looking for a specific application?   Contact us today.

    Got a question?  Not sure what you need?  Just complete the Application Questionnaire

    GET A QUOTE TODAY | SERVICE | SALES | TRAINING

    Americas +1.916.638.4944
    EMEA +49 69 20436910
    China/APAC +86 400 086 0106

    info@process-insights.com


    DATA SERVICES

    Full Support for Analyzer Method Development and Optimization

    Online and laboratory analyzers from Process Insights are supported by the very best application and calibration expertise available today. From preexisting models for a wide range of physical and chemical properties to customer-specific model development and validation, we’re here to ensure you achieve top performance from your optical spectroscopy analyzers and mass spectrometers.  Learn more.

    ENSURE YOU GET THE MOST FROM YOUR DATA

    With the Process Insights Modeling Support Agreement, customers have access to continuous model support and optimization throughout the life of the analyzer. Our application specialists work with you to validate and improve your calibration models year-after-year.


    SEE HOW WE’RE SOLVING OUR CUSTOMERS MOST COMPLEX CHALLENGES

    Do you know when to use a flow cell instead of an insertion probe?
    Why Controlling the Temperature of the Sample Interface Matters
    Why Use Process Analytical Spectroscopy for Real-Time Monitoring?

    OUR NIR-UV-VIS PROCESS & LAB ANALYZERS

    NIR-O™

    GUIDED WAVE™ Process Analyzer Spectrometer
    Process Insights_guided wave- NIR-O_process analyzer

    LAB NIR-O™

    GUIDED WAVE™ Full Spectrum NIR Laboratory Analyzer Spectrometer
    Process Insights_guided wave - Lab-NIRO-1

    Stability Monitoring System

    GUIDED WAVE™ UV-VIS Analyzer Spectrometer
    Process Insights_guided wave- NIRO_web

    M508plus™

    GUIDED WAVE™ UV-VIS Analyzer Spectrometer
    Process Insights_guided wave-M508-analyzer Closed-Door

    LAB M508plus™ Benchtop

    GUIDED WAVE™ Benchtop or LAB UV-VIS Analyzer Spectrometer
    Process Insights_Guided Wave_Model 508plus benchtop

    ClearView db™

    GUIDED WAVE™ VIS-NIR Dual-Beam Analyzer Photometers
    Process Insights_Guided Wave ClearView-db-enclosures-400x135

    HPV™

    GUIDED WAVE™ Hydrogen Peroxide Vapor Photometer System
    Process Insights_Guided Wave Hydrogen Peroxide Vapor Analyzer HPVA Photometer Systems

    APHA Color Analyzer

    GUIDED WAVE™ VIS-NIR Dual-Beam Analyzer Photometer System
    Process Insights_Guided Wave ClearView-db-enclosures-400x135

    ASTM Color Analyzer

    GUIDED WAVE™ VIS-NIR Dual-Beam Analyzer Photometer System
    Process Insights_Guided Wave ClearView-db-enclosures-400x135

    Saybolt Color Analyzer

    GUIDED WAVE™ VIS-NIR Dual-Beam Analyzer Photometer
    Process Insights_Guided Wave ClearView-db-enclosures-400x135

    Turbidity Color Analyzer

    GUIDED WAVE™ VIS-NIR Dual-Beam Analyzer Photometer

    Probes & Flow Cells / Fiber & Accessories

    GUIDED WAVE™ Accessories for NIR-UV-VIS
    Process Insights_Probes & Flow Cells

    Using a broad spectral region from the near-infrared to the mid-infrared, our ANALECT® Series of FTIR/FT-NIR analyzers measure physical and chemical properties of liquids, solids and gases.  They are ideal for complex refinery applications such as fuels blending and component streams applications for polymers, petrochemicals, chemicals, pharmaceuticals in addition to general manufacturing.

    BENEFITS OF FT-NIR

    • On-line, in-situ, and at-line monitoring of batch and continuous processes
    • Rugged, reliable, benchtop or rack mount
    • Real-time monitoring of physical properties and chemical composition of liquids and solids all from one instrument
    • High resolution and wavelength accuracy
    • High signal energy
    • Stable and repeatable

    principle of operation

    • No moving reflective surfaces
    • Fixed corner cube mirrors, scanning transparent wedge
    • Higher tolerance to vibration and temperature variations
    • Uniquely designed for operation in harsh environments
    • Highly reproducible optical design enables Instrument Standardization

    For Crude Oil through Fuels Blending

    ANALECT® RefinIR™ Laboratory Analyzer

    • Extended range FTIR spans the near and mid-infrared regions for enhanced information content
    • Fully automated system provides reproducible spectra of crudes under reproducible sampling conditions with only 20ml of sample.
    • Auto qualifies according to ASTM D6122
    • Unattended auto sampling technique for up to 24 samples preserves sample integrity and measures crudes from 8 to 80 API at typical operating conditions.
    • Heated enclosure maintains samples at fixed temperature (up to 120°C)
    • Instrument standardization ensures calibration transfer – uses same interferometer, cell and detector as online analyzer
    • Typical analysis time 5 minutes per sample
    To Top
    ANALECT® RovIR
    ANALECT® Diamond MX

    Got a question?  Not sure what you need?  Just complete the Application Questionnaire

    GET A QUOTE TODAY | SERVICE | SALES | TRAINING

    Americas +1.916.638.4944
    EMEA +49 69 20436910
    China/APAC +86 400 086 0106

    info@process-insights.com

    To Top

    OUR FTIR FT-NIR PROCESS & LAB ANALYZERS

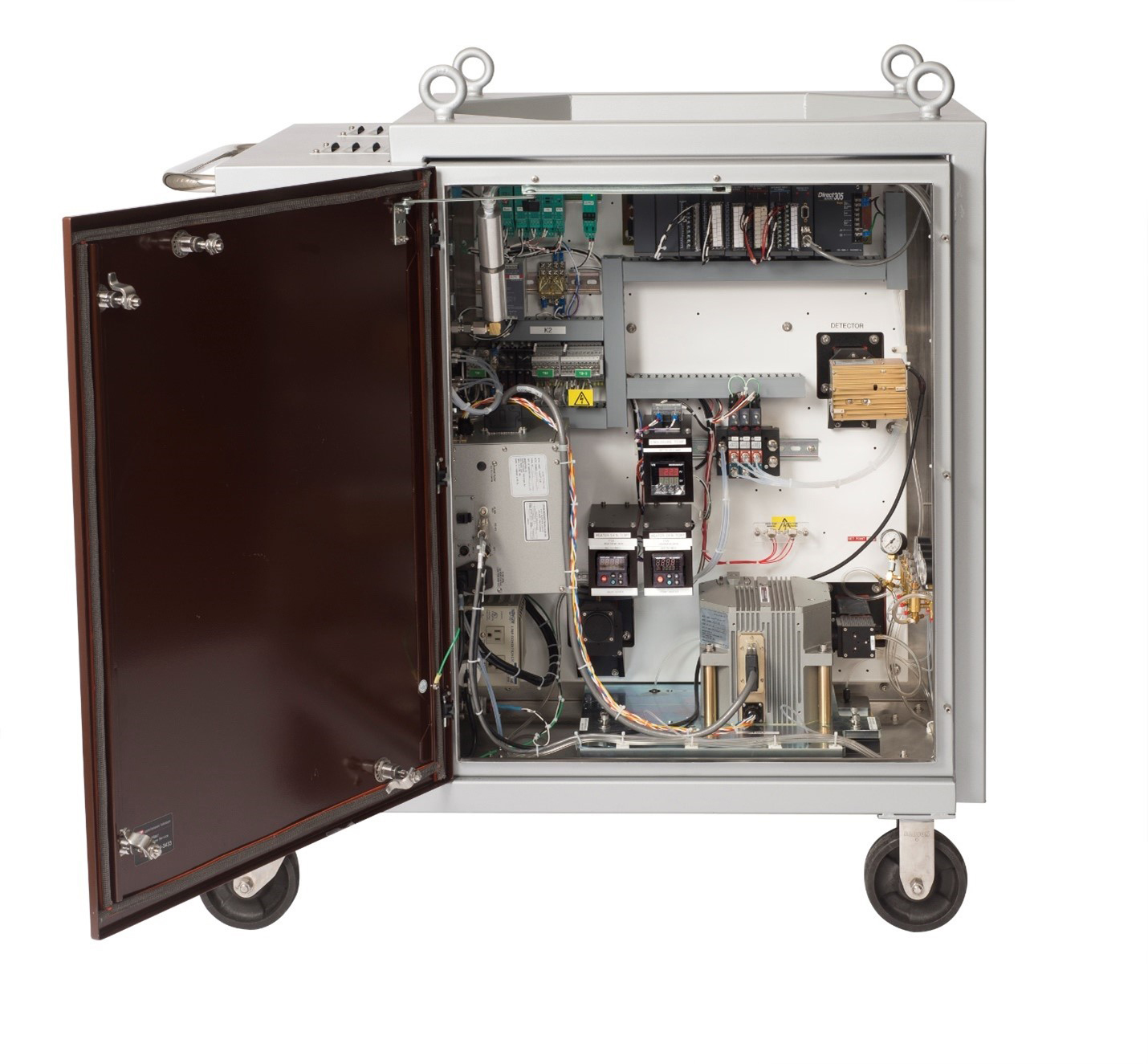

    RovIR™

    ANALECT® FTIR Portable Analyzer for Real-Time Dynamic Monitoring of Pilot Scale Reaction Chemistries & Continuous Process Streams
    ANALECT® RovIR

    RefinIR™

    ANALECT® Fully Integrated Laboratory Autosampler & FTIR Instrument Designed To Analyze Heavy & Light Hydrocarbons Including Crude Oil & Gasoline
    ANALECT® RefinIR

    Hydrocarbon Smart System™

    ANALECT® On-Line, Real-Time FTIR Monitoring of Refinery & Petrochemical Process Streams in Hazardous Areas
    ANALECT® Hydrocarbon SmartSystem®

    Diamond MX™

    ANALECT® FT-NIR On-Line Analyzer for Round-The-Clock Multi-Point Continuous Air Monitoring for a Variety of Applications
    ANALECT® Diamond MX

    Diamond 20™

    ANALECT® FTIR/NIR Analyzer for Operation in Rugged At-Line Environments and on the Laboratory Bench
    Process Insights_ANALECT® Diamond 20

    PCM 1000™

    ANALECT® Mid IR Direct Coupled Analyzer for On-Line, In-Situ & At-Line Monitoring of Batch & Continuous Processes Measuring Physical, Chemical & Compositional Properties of Liquids, Solids & Gases
    ANALECT PCM 1000

    PCM 5000™

    ANALECT® Mid-Infrared Analyzer for Measuring Physical, Chemical & Compositional Properties of Liquids, Solids & Gases
    ANALECT PCM 5000

    EVM™

    ANALECT® FTIR Monitoring Analyzer for Real-Time Analysis of Organic & Inorganic Compounds with ppb to % Level Detection.
    ANALECT® EVM
