Unlock Real-Time Fuel Gas Insight: Eliminate Combustion Risks and Compliance Surprises
Maintaining consistent fuel gas quality is critical for efficient combustion, emissions control and protecting downstream equipment. However, operators often face difficulties in real-time monitoring of fuel gas composition and sulfur content. Incomplete or delayed data can lead to suboptimal combustion, unexpected process upsets, and costly compliance violations due to excess sulfur emissions. When real-time insight is missing or delayed, operators face a cascade of consequences:
Hidden Composition Swings
Fuel gas streams often fluctuate in methane content, inert gases, and trace contaminants. Without continuous, on-line analysis, these swings go unnoticed until combustion performance deteriorates—resulting in flame instability, reduced thermal efficiency, and increased unburned hydrocarbons.
Sulfur Surprises
Even small spikes in sulfur can poison catalysts, corrode piping, and trigger environmental excursions. Relying on periodic grab samples means you’re always reacting to yesterday’s data, not today’s reality.
SALES | TRAINING INQUIRIES
AMERICAS: info.americas@process-insights.com
EMEAI (includes India): info.emeai@process-insights.com
APAC: info.apac@process-insights.com
CHINA: info.cn@process-insights.com
9800 CXi BTU Wobbe Index, CARI Calorimeter
Optimized for fuel gas and flare gas, it measures the heating value (BTU) without emitting hydrocarbons during operation—using high-temperature combustion and residual‑O₂ analysis.
Key Features:
-
- Zero hydrocarbon emissions—flameless combustion at ~1000 °C
- Measures BTU and optionally Wobbe Index, CARI, and specific gravity
- Handles high sulfur content and soon hydrogen too
- Ideal for monitoring fuel streams in real time and ensuring compliance

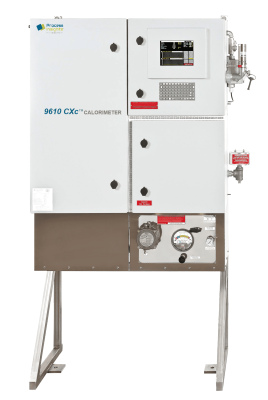

9610 CXc Continuous BTU Calorimeter
Delivers real-time, continuous monitoring of Wobbe Index, heating value, and CARI for various fuel gases including natural gas, biogas, flare gas, etc.
Key Specifications:
-
- ±0.2–0.4% accuracy in calorific heating value and Wobbe Index
- Fast response (T90 ~5 seconds) for real-time control
- Uses residual-O₂ measurement via a catalytic furnace (~800 °C) and zirconia sensor
- Low maintenance, with no flameouts, and suitable for indoor/outdoor setups
SGA-1000 Total Sulfur in Gas Analyzer
ATOM INSTRUMENT™ SGA-1000™ provides accurate, continuous measurement of total sulfur in the fuel gas stream using proven UV fluorescence technology. This ensures compliance with environmental sulfur limits and protects process units from corrosion and catalyst poisoning.
Key Features:
- Patented Excimer UV‑Fluorescence (EUVF) for Ultra‑Low Sulfur Detection
- Utilizes advanced EUVF technology to detect sulfur in gas streams down to below 1 ppm, offering exceptional sensitivity and stability—ideal for compliance-critical environments.
- High-Speed, Multi‑Stream Analysis with Customizable Cycle Times
- Offers the fastest analysis in its class with a standard 100-second cycle, which can be accelerated to 60 seconds. Supports user-defined averaging across multiple cycles for optimal data quality.
- Compact, Field‑Ready Design with Minimal Utility Needs
- Designed for outdoor industrial use without a shelter. Boasts a compact footprint, simple maintenance, and low utility consumption—only requiring bottled air.
MAX300-RTG Quadrupole Mass Spectrometer
EXTEL™ MAX300-RTG™ delivers fast, real-time analysis of the complete fuel gas composition—including hydrocarbons, H₂, CO, CO₂, O₂, and other key species—with high precision and reliability. This allows operators to quickly adjust fuel/air ratios for optimal combustion performance and heat balance.
Key Features:
- Fast & Comprehensive Real‑Time Gas Analysis
- Delivers complete speciated gas composition in just seconds (down to 0.1 s per component), capturing contaminants from ppb to percent levels.
- Automatically calculates and outputs derived process metrics like BTU value, specific gravity, and Wobbe index in real-time.
- Supports automated monitoring of up to 160+ sample points via multi-port selectors.
- Customizable sampling routines enable a single analyzer to serve multiple process lines or streams, reducing equipment footprint and cost.
- High Sensitivity, Stability & Rugged Design
- Features a 19 mm quadrupole with dual-detector configuration: Faraday (100 %–5 ppm) and electron multiplier (100 %–5 ppb, ppt with inlet)s
- Offers exceptional precision (<0.05 % RSD over 24 h) and stability (<0.5 % RSD over 30 days), with robust operation in harsh industrial environments.
- Designed for minimal maintenance dual filaments with automatic switchover, modular parts, and uptime >99 % .
