MAX300-BIO

Bioreactor & Fermentation Quadrupole Mass Spectrometer

MAX300-BIO | Unmatched Technology for Bioreactor Monitoring

Powerful Mass Spec Technology

Mass Spectrometry is a powerful tool for bioreactor monitoring. Changes to the composition of bioreactor or fermenter off-gas provide crucial insight into cellular health and production efficiency. This makes the fast, accurate analysis of CO2, O2, N2, Ar, H2O and other compounds essential for real-time process control.  Our EXTREL™ MAX300-BIO™ Bioreactor & Fermentation Quadrupole Mass Spectrometer uses cutting edge quadrupole mass spectrometer technology to quantify bioreactor gases from multiple reactors within the facility and reports the data to the control system in real-time.  Contact us today.

One MAX300-BIO Bioreactor & Fermentation Quadrupole Mass Spectrometer is capable of analyzing up to 80 samples with the use of a single FAST multi-port valve.  Accurate off-gas analysis tells the control loop exactly what is happening inside each reactor without the risks involved with probes or manual sampling.

calculates the key indicators of organism health and process efficiency

  • Carbon Dioxide Evolution Rate (CER)
  • Oxygen Uptake Rate (OUR)
  • Respiratory Quotient (RQ)
  • Total Gas Flow
  • Total Mass Balance
  • Liquid Concentrations in the vessel
  • Batch Quality – Analysis of minor ppm/ppb level components such as formaldehyde, methanol, acetic acid, etc.
  • Gases Measured: CO2, O2, N2, HVO, argon, ethanol, methanol, formaldehyde, AND others

    BENEFITS

    The MAX300-BIO Bioreactor & Fermentation Quadrupole Mass Spectrometer is a powerful analytical instrument designed for monitoring the gases produced and consumed during biological fermentation processes. Here are some of the benefits:

    • Accurate and Reliable: Provides accurate and reliable measurements of gas concentrations, ensuring the optimization of bioreactor performance.
    • Real-Time Monitoring: Provides real-time monitoring of gas concentrations, allowing for quick adjustments to bioreactor conditions.
    • Easy to Use: Easy to use, with an intuitive interface and simple calibration procedure.
    • Low Maintenance: Requires minimal maintenance, reducing downtime and maintenance costs.
    • Multiple Gas Detection: Capable of detecting multiple gases simultaneously, including CO2, O2, H2, and CH4, making it a versatile option for bioreactor monitoring.
    • Comprehensive Data Analysis: Includes data analysis software, allowing for comprehensive data analysis and visualization.
    • Enhanced Bioreactor Performance: Enables the optimization of bioreactor performance, leading to increased yields and improved product quality.

    Applications

    • Biofuels
    • Ethanol
    Pharmaceutical
    • Enzymes
    • Antibiotics
    • Steroids
    • Vitamins
    • Biomass
    • Biopolymers
    • Alcoholic Beverages
    • Bread Products
    • Waste Treatment

    • Quantitative analysis of individual contaminants PPT detection limits
    • Analysis time in seconds
    • Measures CO2, O2, N2, H2O, alcohols, contaminants, and more
    • Samples without risk of contamination
    • Calculates control parameters in real-time (e.g. Respiratory Quotient)
    • Provides flow and mass balance data
    • Multiport sample systems for up to 80+ reactors
    • High precision and accuracy for optimal process automation
    • Low maintenance, utilities and calibration required
    • Complete method scale-up
    • Lab, Pilot, Production
    extrel

    Mass Spectrometer for Bioreactor &
    Fermentation Applications

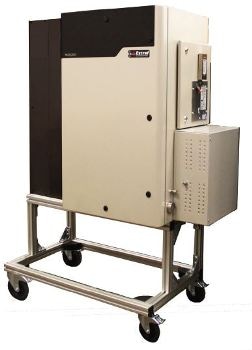

     MAX300-BIO™ Bioreactor & Fermentation Quadrupole Mass Spectrometer IO

    The MAX300-BIO Bioreactor & Fermentation Quadrupole Mass Spectrometer and MAX300-RTG 2.0 Industrial Gas Analyzer have been installed in major manufacturing stages within pharmaceutical industries. One of the main applications is fermentation process control.  In the fermentation process, the growth of bacteria and production of drugs takes place under very tight conditions. The aeration rate, temperature and dosage of nutrients are regulated very closely during several stages of the process. The Quadrupole Mass Spectrometer is used to provide full, fast and precise analysis of the incoming air and the off gas from the Fermenter.

    The results are used to calculate the Respiratory Quotient (RQ), a major parameter in controlling growth and health of the bacteria. In different stages of a batch fermentation process, the RQ value changes, thus allowing for optimum and efficient drug production. The additional analysis of minor concentrations of by-products allows for rapid process adjustment to avoid undesired reactions.  This multi-stream capability makes the MAX300-BIO Bioreactor & Fermentation Quadrupole Mass Spectrometer the economical alternative to infrared and oxygen analyzers installed on top of each Fermenter.
