Our EXTREL™ MAX-QMS™ Flanged Mounted Systems are UHV-compatible flange mounted quadrupole mass spectrometers. The ionizer, quadrupole mass filter, and detector on a mounting flange are designed for inclusion in your experimental vacuum chamber. The electronics consist of the rack mountable QCi (Quadrupole Control, integrated) quadrupole mass filter power supply and a Merlin CS (Command System). The Merlin mass spectrometer controller software completes the system.  Our MAX Systems are based on our industry leading mass spectrometer technology centered on our range of RF power supplies, and our 9.5 mm and 19 mm tri filter mass filters.

Spectra Scan

  • 20 separate non-overlapping mass ranges, more available using customer-written Macros
  • Real-time profile, histogram and chromatograph (TIC) display
  • Single scan, continuous and external trigger
  • 12,500 data points per second scanning

Single Ion Monitoring

  • 29 SIM masses, more available using customer-written Macros
  • Real-time profile, histogram and chromatograph (TIC) display
  • Single scan, continuous, external trigger

MS/MS

  • Monitor and control combinations of up to 4 separate quadrupoles, hexapoles, or octupoles using optional TQMS module

System Control Data Manipulation

  • Averaging and data smoothing
  • Background subtraction
  • Trend plotting
  • Post-acquisition centroid
  • Chromatographic quantitation
  • Calibration curves

APPLICATIONS

    • Bakeout/Vacuum Pumpdown
    • Catalysis
    • Combustion Analysis
    • CVD Process Monitoring
    • Dynamic SIMS
    • Emissions Monitoring
    • End Point Detection
    • Flow Tube Detection
    • Laser Ablation Studies
    • Molecular Beam Studies
    • Outgassing Studies
    • Plasma Monitoring
    • Residual Gas Analysis (RGA)
    • Scattering
    • Temperature Programmed Desorption (TPD)
    • Clusters and Biomolecule Analysis
    • Atmospheric Chemistry Studies
    • Plasma and Combustion Studies
    • Materials Analysis
    • He/D2 Analysis

    BENEFITS

    The MAX-QMS™ Flanged Mounted System benefits:

    • High Sensitivity: Offers high sensitivity and low detection limits, allowing for the measurement of trace-level gases in complex gas mixtures.
    • Real-Time Monitoring: Provides real-time monitoring of gas concentrations, allowing for quick adjustments to process conditions.
    • Multiple Gas Detection: Is capable of detecting multiple gases simultaneously, making it a versatile option for gas analysis.
    • Wide Range of Applications: Is suitable for a wide range of applications, including process control, emissions monitoring, and atmospheric research.
    • Easy to Use: Is easy to use, with an intuitive interface and simple calibration procedure.
    • Low Maintenance: Requires minimal maintenance, reducing downtime and maintenance costs.
    • Flexible Mounting Options: Can be mounted directly onto a process line or on a flange, providing flexibility in installation.
    extrel

    Flanged Mounted Mass Spectrometer

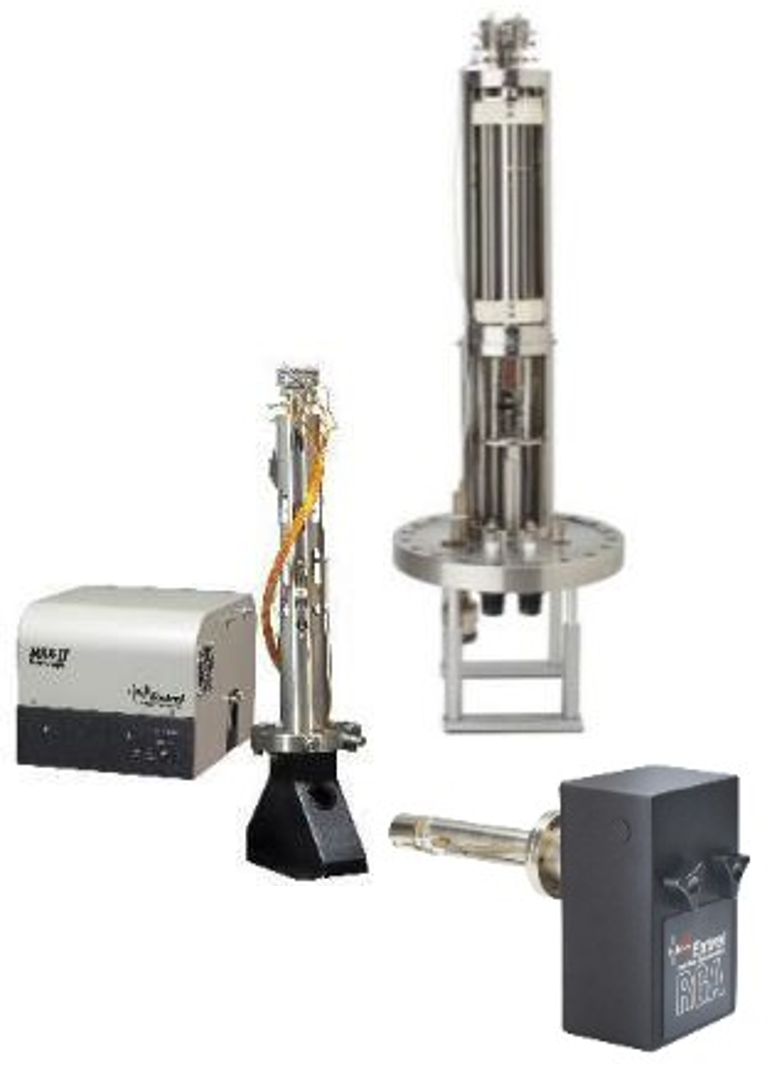

    Process Insights_Extrel MAX-QMS FLANGE MOUNTED SYSTEM

    For a complete range of analytical instrumentation, applications, systems, and service options, we will work to match your needs and budget and provide the optimal, and most stable process analysis solution for your application.

    SALES | TRAINING INQUIRIES

    AMERICAS: info.americas@process-insights.com

    EMEAI (includes India): info.emeai@process-insights.com

    APAC:  info.apac@process-insights.com

    CHINA:  info.cn@process-insights.com

    SERVICE | TECHNICAL INQUIRIES ONLY

    We offer a wide range of flange mounted Quadrupole Mass Spectrometers (QMSs) and Residual Gas Analyzers (RGAs) that can fit any application or budget.

    • All of these systems include an Ionizer, Quadrupole Mass Filter, Detector, Mounting Flange, Power Supplies, Control Electronics and Software.
    • Can be used as the core of a new mass spectrometer system, or as a way to add mass spectrometry to an existing system or as a diagnostic tool.
