ANALECT RefinIR

Next-Gen FTIR/FT-NIR Process Analyzer for Refining Applications

Our ANALECT® RefinIRprocess analyzer is a fully integrated laboratory autosampler and FTIR instrument designed to measure liquid hydrocarbons including gasoline, diesel and crude oils in a single autosampler. The ANALECT RefinIR delivers automated spectral data acquisition of multiple liquid refinery stream samples from crude oils to blended gasoline and diesel.

The system utilizes the ANALECT XCORR™ Model Transference Protocol allowing data and models to be seamlessly transferred to the on-line ANALECT Hydrocarbon SmartSystem

It features the ANALECT Diamond 20™ Transept™ Interferometer Platform with the improved DCM 600™ data acquisition electronics. This provides improved performance utilizing SpectraQ™ Software with a customizable HMI for operating the system. Determination of physical properties and chemical composition can be achieved with the touch of a button. The ANALECT RefinIR automates calibration data collection in support of our Hydrocarbon SmartSystem online process analyzer.

  • Automated spectral data acquisition of multiple liquid refinery stream samples from crude oils to blended gasoline and diesel.
  • Autosampler can be heated up to 125°C to allow sampling of heavy crudes and intermediates, such as FCC feed.
  • Holds 24 15 ml vials and automatically transfers the sample to a flow- through transmission cell embedded in in the autosampler.
  • Includes compliance to ASTM D6122 via a wash and validation functionality that eliminates cross-contamination of samples and pro- vides a quick assurance of spectral quality.
  • Reduces the laboratory benchtop footprint by up to 60%.
  • Newly designed carousel for robust operation.

SOFTWARE POWERING YOUR ANALYZER

SpectraQ enables the effective use of our instruments and sampling accessories for routine laboratory analysis and instrument validation.  With one touch of the button, SpectraQ software allows the user to automatically collect FTIR spectra of a full carousel of samples. In addition, the software provides the user the ability to perform a full ASTM D6122 validation to ensure spectral integrity.

  • Designed to collect calibration spectra and perform routine quantitative analysis on samples.
  • Unique in the fact that it is designed to integrate seamlessly with the SpectraRTS™ process spectroscopy software.
  • Incorporates a Routine Analyzer Validation Protocol that confirms the analyzer’s performance is harmonized for the data collection mode.
  • Background and data collection mode, simple color-coded alarms alert the user to readiness and validity of the analyzer including system diagnostics.
      To Top




      Next Generation Hydrocarbon Analyzer for Lab Automation Process Development

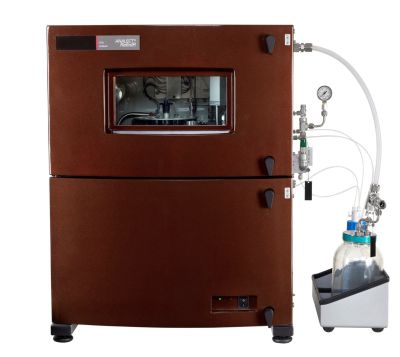

      ANALECT® RefinIR

      Got a question?  Not sure what you need?  Just complete the Application Questionnaire.  We’re here to help.

      Applications

      •  Fuel blending
      • Component streams applications for polymers, petrochemicals, chemicals, pharmaceuticals and eneral manufacturing
