Simplified Design Improve Reliability

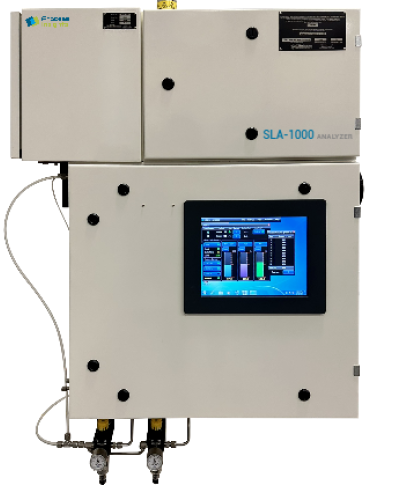

Calibration and validation routines are seamlessly incorporated into our SLA-1000 operation software. The analyzer has a very fast response time to process changes (within 1 cycle), ensuring proper process monitoring with fast-moving processes. The sample injection system design is simplified resulting in greater reliability and lower maintenance, for example, the sample valve only actuates once per cycle increasing lifetime. Finally, the analyzer results are insensitive to sample buildup or interference from oxygenates present in the sample stream.

Principle of Operation

The UV Fluorescence method is the most simple and practical low-level sulfur analytical technique. It has been widely used and proven over many years of use in industrial settings. This method involves the injection of a sample into a high-temperature oxidation furnace, converting all hydrocarbons into water (H₂0) and carbon dioxide (C0₂).  Total sulfur contained in molecular-bound hydrocarbon species is oxidized at temperatures in excess of 1000°C into sulfur dioxide (S02) by the reaction:   R-SH + O₂ → SO₂ + CO₂ + H₂O

The furnace effluent containing these combustion byproducts is directed into a detection chamber where it is excited by high-energy, short-wavelength emission from the excimer source. The UV photons from the excitation source, transfer energy into the SO₂molecule and raise its energy level to create back to their lower energy ground state releasing the absorbed energy as a secondary emission known as fluorescence:   SO₂ + hv → SO₂^* → SO₂ + hv’

Fluorescence emission is optically filtered to remove undesired wavelengths from excitation source and background scatter within the detector chamber. Detection of filtered fluorescence emission is accomplished using a Photomultiplier Tube and amplified by proprietary high sensitivity electronics.

Graphical User Interface (GUI)

The SLA software incorporates a user-friendly Graphical User Interface (GUI) designed to be both intuitive and easy to use.  All aspects of analyzer operation are accessible from the Main toolbar utilizing drop-down menu screens. The home screen displays 3 user selectable digital readout and analog bar graphs updated in real-time from the analysis. Run Cycle Status and current timed events are also refreshed in real-time. Major system control elements are also incorporated in this home screen. The calibrate menu allows complete control of calibration and validation processes, including manual, auto calibration, and validation sequencing. Analytical results acquired during these events may be inspected at any time prior to subsequent calibrations.  All other menu screens such as Timed Events, Detector, Analog Output, Digital 1/0 and System Alarm Settings, allow the user to easily monitor or make changes to all aspects of analyzer control and operation. The GUI software also includes user setup and password security, as well as graphics plotting of real-time analysis data and display of historical settings.

The Analyzer Central Communication Ethernet Server Software allows an authorized user to access any analyzer on the facility network from an internal office or workstation. After a successful security login, the network will initiate communication to the selected instrument of choice. Once connected, the instrument can be operated and interfaced with, just as if the user was standing directly in front of the instrument. Instead of utilizing the analyzer touch screen, the remote connection keyboard and mouse are used for all interface requirements.
