LAS-1000

Reliable TOTAL SULFUR-NITROGEN ANALYZERS

For Industrial Applications Measuring Total Sulfur and Total Nitrogen in Liquids

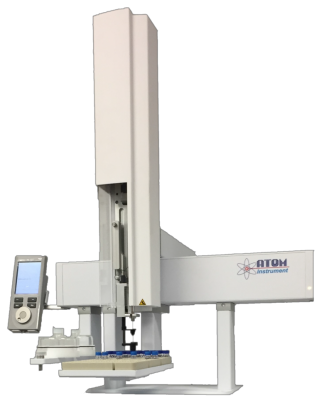

Our ATOM LAS-1000 Liquid Autosampler has been perfected so its operation can be fully integrated with the ATOM XT-2000 laboratory analyzer.  This ultra-fast, reliable, efficient and safe handling of liquid samples with seamless integration with the XT-2000 laboratory analyzer for measuring total sulfur and total nitrogen analyzer is suitable for a wide variety of applications and industries.  Autosampler injection repeatability is below 0.60% RSD and linearity R>0.9999 allowing the LAS-1000 combined with the XT-2000 analyzer to achieve 30 ppb repeatability for both total sulfur and total nitrogen measurement.

The LAS-1000 can be easily mounted directly on top of the XT-2000 laboratory analyzer eliminating the need for additional benchtop space. The use of servomotors allows rapid, precise, and accurate control of movements and eliminates routine maintenance needs. The use of XYZ-axis vectorized movement for sample handling reduces the time needed for operations.

BENEFITS

  • built for ultra-fast, reliable, efficient and safe handling of liquid samples
  • Seamless integration with the XT-2000 laboratory total sulfur – total nitrogen analyzer
  • Autosampler does not require any additional benchtop space for operations with the XT-2000 analyzer
  • Unmatched analytical performance
  •  suitable for many applications and industries
  • Accurate and precise sample handling
  • XYZ-axis vectorized movement
  • Fully servomotor controlled
  • Full Integration with XT-2000 software
  • Safe operations
  • No additional benchtop space required
  • Large sample capacity: 162 Vials of 2 mL per tray holder with up to 2 trays holders
  • Syringe protection with missing vial detection
  • Optimized movement for highest sample analysis rate
  • Highly reproducible injection
  • Faster analysis for higher throughput

REPEATABILITY

The LAS-1000, combined with the XT-2000 analyzer, ensures optimal analytical performance. Autosampler injection repeatability below 0.60% RSD and linearity R>0.9999 allow the LAS-1000 combined with the XT-2000 lab analyzers to achieve 30 ppb repeatability for both total sulfur and total nitrogen measurement.

EASY TO USE

The LAS-1000 operation is fully integrated with the XT-2000 and managed directly through the Laboratory User Interface (LUI).

For a complete range of oxygen monitoring options, please contact us.

SERVICE | SALES | TRAINING

Phone:  +1 713-947-9591

Fax:  +1 713-947-7549

sales@cosaxentaur.com

service@cosaxentaur.com




Fast and Versatile Innovative Liquid Autosampler for Total Sulfur Analysis

Process Insights_ATOM LAS-1000

COMPLIANCE IN APPLICATIONS

  • D4629 – Standard Test Method for Trace Nitrogen in Liquid Hydrocarbons by Syringe/Inlet Oxidative Combustion and Chemiluminescence Detection
  • D5453 – Standard Test Method for Determination of Total Sulfur in Light Hydrocarbons, Spark Ignition Engine Fuel, Diesel Engine Fuel, and Engine Oil by Ultraviolet Fluorescence
