Optimize Your Analysis with the MAX300 UHP Series Mass Spectrometer

 Mass spectrometry is a powerful tool for process and impurity monitoring. Trending changes to the composition provides crucial insight into production efficiency. The continuous measurement of these streams enables faster reactions to change in the process. The MAX300 UHP Series Mass Spectrometer uses industry trusted quadrupole mass spectrometer technology to quantify gases from multiple sources within the facility and reports the data to the control system in real-time.

 Based on decades of proven performance and thousands of process control installations worldwide, our mass spectrometers provide the stability and precision of a laboratory-grade analytical instrument in a rugged platform optimized for continuous operation in demanding manufacturing environments.

Designed to Maximize Uptime and Streamline Process Control

The innovative design of the MAX300 UHP Series Mass Spectrometer provides stability, flexibility and ease-of-use.

 No carrier gas needed

• • No contribution of impurities from carrier gas
  • Cost savings with lower utilities

 Measurements with confidence and speed

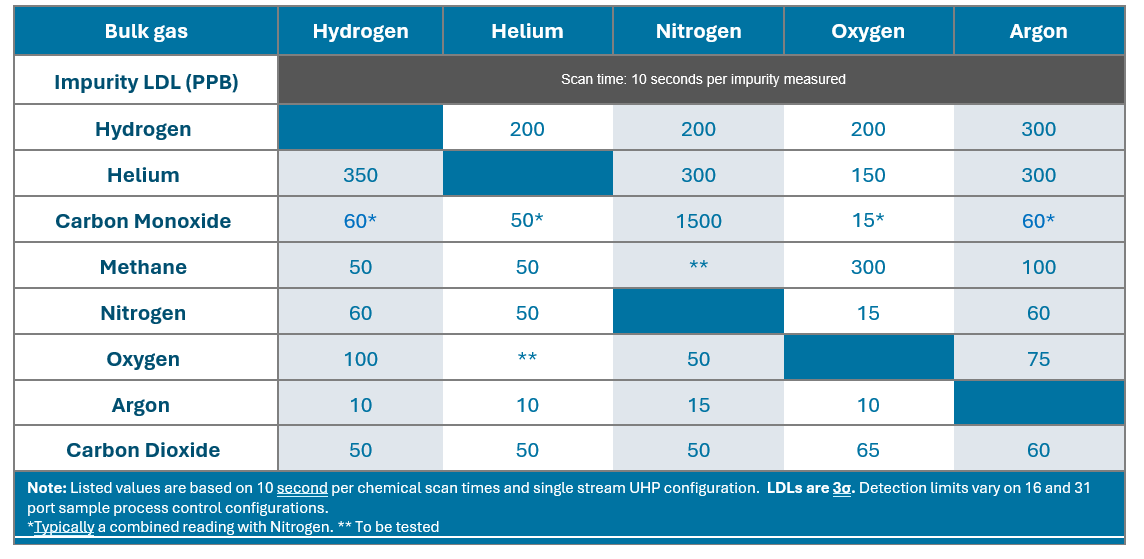

• • From LDL to 100%, understand exactly what is happening in your process
  • <3.5 seconds per chemical for process control measurements
  • <10 seconds per chemical for purity measurements

Fast response

• • T-90 times are less than <10 seconds for most chemicals
  • Detect upsets faster for tighter process control
  • Early detection of impurity breakthrough
  • Low gas consumption

Near-zero peak drift over 30 days

• • Stability and accuracy for optimal process automation
  • Larger 19mm quadrupole mass filter combined with industry leading electronics results in a long-term stable analysis
  • Long intervals between maintenance and calibrations

Fast, Accurate, Efficient

 Combining the power of Questor5 with industrial-grade hardware, the MAX300 UHP Series Mass Spectrometer is a 24-7 monitor with a documented uptime >98%. Faster data means better control. High peak stability means more time analyzing and less time calibrating. The MAX300 UHP Series Mass Spectrometer is an analytical platform with the speed necessary to provide real-time process data.

The quadrupole mass spectrometer does not require any carrier gas. No carrier gas means no impurity contribution to the analysis and lower utility costs.

SALES | TRAINING INQUIRIES

AMERICAS: info.americas@process-insights.com

EMEAI (includes India): info.emeai@process-insights.com

APAC:  info.apac@process-insights.com

CHINA:  info.cn@process-insights.com

SERVICE | TECHNICAL INQUIRIES ONLY

Analyzers for Every Step in the Process

Complete configuration options from the Lab to Production! The MAX300 UHP Series Mass Spectrometer of analyzers has two main footprints each with the same options available for single to multiple streams.

The MAX300-LG UHP platform offers a compact way to meet analysis needs in temperature controlled, tight spaces. While the MAX300-RTG UHP platforms offer onboard temperature control and the option to install in either general purpose or classified (C1D2, C1D1, ATEX Zone 2, ATEX Zone 1) areas.

Analytically the analyses maintain their performance no matter the platform, making scale up, or retrofits easy.

When changing between models, there is no new software to learn, and the same great features are readily available.

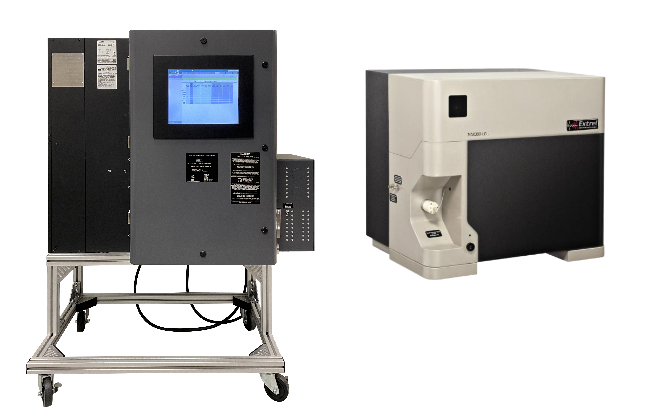

MAX300-RTG UHP                             MAX300-LG UHP

Software Designed With You in Mind

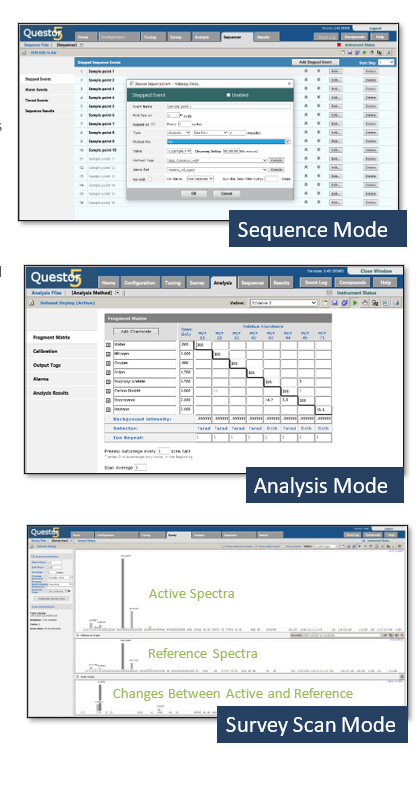

The Questor5 software that drives the MAX300 UHP Series Mass Spectrometer offers flexibility to measure single or multiple points in a fully customizable sequence for site-specific, automated production control. Need to use your existing sample panel? Not an issue, the Questor5 software and output to take in custom commands to make integration seamless.

User configurable

• Analysis Methods
• Calculations
• Frequency of sample points
• Order of sample points
• Addition or removal of chemicals
• Addition or removal of sample points

Versatile data collection

Analysis Mode

• Define or update chemicals for analysis
• Calibrate to account for chemical interferences

Survey Scan Mode

• Identify the presence of mass spectra from potential “unknowns”
• Powerful troubleshooting tool

Intuitive, secure interface

• Check instrument status
• Review data
• Run a validation sequence
• Plant network access
• Industry security standards for login and electronic record keeping (21 CFR 11)

Optimized Maintenance

• Low calibration frequency
• Automated validations
• Streamlined maintenance schedule and procedures
• Plug-and-play parts
