Modern steel production involves multiple high-temperature processes where gas composition provides valuable information about reaction chemistry, furnace efficiency, carbon conversion, combustion, process conditions, and emissions.
Continuous process gas analysis gives operators visibility into these changing conditions while production is occurring.
Process Insights analytical technologies support measurement throughout the steelmaking process:
Coke Making → Blast Furnace → Basic Oxygen Furnace → Electric Arc Furnace → Process Control → Emissions
Blast Furnace Off-Gas Analysis
Blast furnace gas composition provides valuable information about furnace operation and process conditions. Continuous multicomponent gas analysis can provide operators with real-time data to support furnace optimization, process stability, combustion management and production efficiency.
Our EXTREL MAX300-RTG’s ability to rapidly analyze complete gas-stream composition makes it particularly well suited to applications where multiple components must be monitored simultaneously.
SALES | TRAINING INQUIRIES
AMERICAS: info.americas@process-insights.com
EMEAI (includes India): info.emeai@process-insights.com
APAC: info.apac@process-insights.com
CHINA: info.cn@process-insights.com
MAX300-RTG 2.0 for Steel & Metals Manufacturing
One Analyzer. Multiple Steelmaking Measurements.

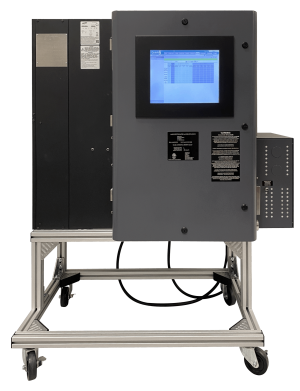

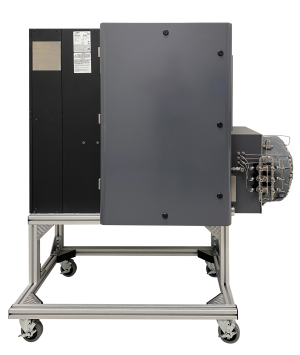

The EXTREL™ MAX300-RTG™ 2.0 Industrial Process Mass Spectrometer uses quadrupole mass spectrometry to continuously monitor industrial gas-stream composition.
