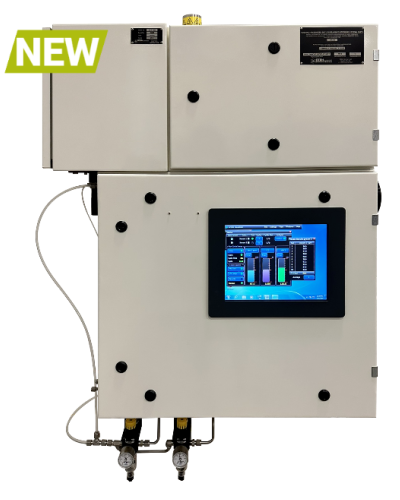

TRACE-1000 N/S

Trace Sulfur or Trace Nitrogen Gas Analyzer

TRACE SULFUR or Trace NITROGEN Gas ANALYZERS

For Fast, Reliable Trace Sulfur-Nitrogen Measurements

Our ATOM INSTRUMENT™ Trace-1000™ Trace Sulfur (Trace S-1000) or Trace Nitrogen (Trace N-1000) Gas Analyzer is an online process analyzer utilizing patented Excimer UV Fluorescence (EUVF) Technology to measure Total Sulfur in a variety of refinery process applications.  The Trace-1000 N/S Trace Analyzer is a field proven technology that utilizes an excitation wavelength that achieves high detection sensitivity and detector stability.

The Trace-1000 N/S Trace Analyzer additionally utilizes a proprietary signal processing technology for both sulfur and nitrogen measurement. This technology coupled with optimized detector designs, provides exceptional analytical performance of total sulfur and nitrogen measurement using a single calibration point. The Trace-1000 Trace Analyzer has the fastest analysis time of any commercially available analyzer providing a 99% response to process step changes in as little as 180 seconds.

  • Trace Sensitivity Measurement of Total Sulfur and Nitrogen (<1 ppm)
  • High speed analysis and response time
  • User defined data averaging
  • Low utility consumption
  • Compact instrument footprint
  • Does not require installation in shelter

INDUSTRIES

Chemical, Petrochemicals and Refineries: Can be used to analyze trace elements in crude oil, natural gas, and other petrochemical products to monitor impurities and ensure product quality.

APPLICATIONS

  • LPG
  • Natural Gas
  • Reforming and Isomerization
  • Catalyst Protection
  • Blending Operations
  • Flare and Stack Gas
  • Refinery Grade Fuels

Simplified Design Improves Certification and Process Monitoring

The Trace-1000 Trace Sulfur (Trace S-1000) or Trace Nitrogen (Trace N-1000) Gas Analyzer measurement capabilities provides complete analysis of all sulfur compounds potentially present in process gas streams and not just a few selected sulfur compounds as with some GC/TDL applications. Calibration and Validation is seamlessly incorporated with an optional calibration switching configuration and associated software for easy compliance or verification testing.

Excimer UV Fluorescence (EUVF) Provides Low Range Detection and Stability

The Trace-1000 Trace Sulfur (Trace S-1000) or Trace Nitrogen (Trace N-1000) Gas Analyzer with EUVF is a field proven technology that utilizes an excitation wavelength that achieves high detection sensitivity and detector stability. The Trace-1000 Trace Analyzer is an excellent fit for applications in the 0 – 1 ppm range and is exceptionally stable, even at concentrations less than 1 ppm. The Trace-1000 Trace Sulfur (Trace S-1000) or Trace Nitrogen (Trace N-1000) Gas Analyzer is designed for outdoor installation and use in harsh environments as may be required by the refining (LPG), Gas Processing (NGL) and Natural Gas industries.
