ANALECT Hydrocarbon Smart System

Robust, Refinery FTIR/FT-NIR Monitoring

NextGen Process FTIR Monitoring Solution

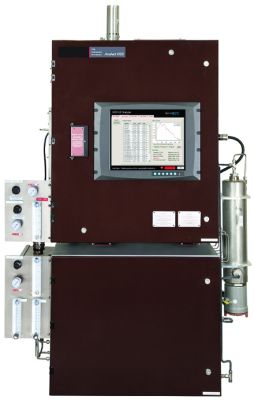

Our ANALECT® Hydrocarbon Smart System™ is the NextGen Process FTIR Monitoring Solution. The HSS analyzer is an online system that provides real-time, accurate and stable monitoring of physical properties and chemical compositions for refinery process streams. The HSS utilizes patented ExxonMobil technology. The HSS analyzer offers unique simple tools for sample system control, model development and DCS communications. The 15” monitor provides easy access to the user-friendly HMI, and provides real-time, accurate and stable monitoring of physical and chemical compositions for refinery process streams. Due to the use of the extended Mid-IR range and its large information content, the system is capable of on-line monitoring of crude oil at the start of the refining process to the fuels blender.

The ANALECT Hydrocarbon Smart System has an extended Near-IR spectral range enables optimal light and heavy hydrocarbons analysis which can analyze up to 24 process streams. It also allows for optional Dual and Triple Cell configuration for multi-stream analysis with an optional heated sample system to analyze heavy hydrocarbons. As with our other analyzers there is seamless calibration transfer between the Diamond 20™ lab system and our Hydrocarbon Smart System analyzer. Customers include BP, Eni Agip, ExxonMobil, Gazprom Neft, Kyokuto, Mozyr Refinery, Nansei, OMV AG, Petrom SA, Phillips 66, SAMREF, Saras, Saudi Aramco, Staatsoile, Takreer, Tonen General, Tupras, and Valero.

Integrated system includes sample temperature conditioning, water removal, filtration, and automatic features including sample outlier collection, cell wash, and sample validation
Rugged vibration-resistant optical bench provides superior stability.
Embedded PC option with SpectraQ™, SpectraRTS™ and SpectraQuant™ Software provides a comprehensive analysis including outlier identification and capture, alarming functions, and detailed system diagnostics.
Global calibration database provides starter models for quick implementation.
Demonstrated uptime greater than 99%.
Remote access via modem or LAN.
RefinIR™ and RefinIR 100t™ automated lab sampling accessories are available for rapid calibration data collection and routine analysis.
Integrate our ASTM compliant D6122 Wash and Validation Skid.
ATEX Zone 1 and 2
NFPA Class I, Division 1 and 2
NEC 505

APPLICATIONS

Our ANALECT Hydrocarbon Smart System is a versatile analyzer system that is used in various applications across the oil and gas industry. Here are some of the common applications that use the ANALECT Hydrocarbon Smart System:

Natural gas processing: The analyzer is used in natural gas processing to monitor the chemical composition of natural gas and ensure that it meets industry standards and regulatory requirements. The system can also be used to monitor the efficiency of the natural gas processing plant and identify potential issues.
Pipeline monitoring: The analyzer is used in pipeline monitoring to detect and identify hydrocarbon leaks in real-time. The system can quickly identify the location and severity of a leak and provide alerts to operators, enabling them to take corrective action promptly.
Refinery process monitoring: The analyzer is used in refinery process monitoring to optimize the refining process, improve efficiency, and ensure product quality and regulatory compliance. The system can measure various parameters, including sulfur content, octane number, and cetane number, which are important in the refining process.
Environmental monitoring: The analyzer is used in environmental monitoring to measure the chemical composition of air and water samples, helping to identify sources of pollution and potential health risks.
Petrochemical production: The analyzer is used in petrochemical production to monitor and control the production process, ensuring product quality and regulatory compliance.
LNG production: The analyzer is used in LNG production to monitor the chemical composition of natural gas and ensure that it meets industry standards and regulatory requirements. The system can also monitor the efficiency of the LNG production plant and identify potential issues.

INDUSTRIES

The ANALECT Hydrocarbon Smart System is primarily used in the oil and gas industry, but it can also be applied in other industries that deal with hydrocarbons. Here are some of the industries that commonly use this system:

Oil and Gas Production: Commonly used in upstream oil and gas production, including exploration, drilling, and production operations. The system is used to monitor and optimize the production process, ensuring that hydrocarbons are extracted efficiently and safely.
Natural Gas Processing: Used in natural gas processing to monitor the chemical composition of natural gas and ensure that it meets industry standards and regulatory requirements. The system can also be used to monitor the efficiency of the natural gas processing plant and identify potential issues.
Refining: Used in refining to optimize the refining process, improve efficiency, and ensure product quality and regulatory compliance. The system can measure various parameters, including sulfur content, octane number, and cetane number, which are important in the refining process.
Pipeline Transportation: Used in pipeline transportation to detect and identify hydrocarbon leaks in real-time. The system can quickly identify the location and severity of a leak and provide alerts to operators, enabling them to take corrective action promptly.
Environmental Monitoring: Used in environmental monitoring to measure the chemical composition of air and water samples, helping to identify sources of pollution and potential health risks.

To Top

For Real-Time, Accurate & Stable Refinery Process Analysis

APPLICATION SUPPORT

We offer many high performance, affordable, turnkey solutions for your application. Click here

Looking for a specific application not listed, or need help? Contact us today.

NIR & UV-VIS Process and Lab Analyzers

Customized, innovative analyzers designed to meet your specific process and safety needs.

FLOW CELLS & PROBES

Customized, innovative probes and flow cells designed to meet your specific process and safety needs.

Data Sheet

GET A QUOTE TODAY | SALES | SERVICE | TRAINING

Americas +1 909. 264.9651
EMEA +49 69 20436910
China/APAC +86 400 086 0106

info@process-insights.com

info@emea.process-insights.com

RMA FTIR/FT-NIR ANALYZERS

Return Materials Authorization Form

Click here

SOFTWARE POWERING YOUR ANALYZER

SpectraRTS™ Software – part of our SpectraSuite™ – engineered exclusively for on-line monitoring, allowing use by engineers, maintenance personnel, and chemists.

A leading-edge Windows® based software utilized with analyzers for process monitoring, analysis and control.
Delivers flexible set-up and control of your system, extensive diagnostics, easy-to-use scripting and robust DCS communications.
Easy access tabs display results and system diagnostics.
Color-coded status information with click access to detailed information.
Full integrated development environment for VB.Net™ compatible scripting language.
DCS communications status.
Display of statistical data with custom sizing and splitter windows.
Control I/O to switch valves and monitor a variety of sample system conditions.
Collect spectra and apply quantitative analysis routines.
Transmit product properties, instrument QC data, and alarms via versatile communications protocols.
Validate and diagnose your system.

SpectraQuant™ Software – part of our SpectraSuite™ – is leading edge Windows® based chemometric software utilized on our ANALECT analyzers for generating predictions. Leveraging Principal Component Analysis (PCA/PCR). SpectraQuant consolidates today’s most recognized features for modeling complex multi-component processes.

Incorporates proven benefits of constrained principal component regression with the tools available in the Eigenvector Research PLS Toolbox™ Suite.
Incorporates baseline constraints, pathlength constraints as well as spectral interference constraints.
Features robust and intuitive user interface that includes a flow chart for step-by-step guidance through the model development process.
Allows for multiple baseline corrections.
Allows for easy frequency selection.
Performs pathlength corrections.

SpectraQ™ Software – part of our SpectraSuite™ – enables the effective use of the ANALECT Diamond 20 for laboratory analysis and instrument validation.

Collect calibration spectra and perform routine quantitative analysis on samples. It is unique in the fact that it’s designed to integrate seamlessly with our SpectraSuite process spectroscopy software.

Validation Skid

Nitrogen for solvent and toluene tank pressurization 4.2 – 8.4kg/cm2 (60 – 120 PSIG) very low average flow.
Instrument Dimensions: Optical head and sample box. 220 cm (h) x 97 cm (w) x 46 cm (d) (87 x 38 x 18 inches).
Weight: 270 kg (600 lbs).

Automated Zero, Validation and Stream Selection

High-reliability, double block-and-bleed valves.

Stable Analysis Conditions

Final moisture, particulate, pressure, flow and temperature conditioning.

Efficient Automated Sample Capture

Software captures only those samples most important for the upgrade of the currently running model.
Up to 4 streams, each stream has a dedicated sample capture cylinder with quick-disconnects for easy removal and replacement.
Spectral data and statistics are automatically saved for each capture sample.

System Validation to ASTM D6122

Validated automatically at regular intervals or on-demand from operator or DCS command.
Manual validation sample introduction.
Validation skid with tanks for validation and wash solvents.
For heavy hydrocarbons, the sample cabinet can be heated up to 100°C.

To Top
