SLA-1000

Reliable TOTAL SULFUR-NITROGEN ANALYZERS

For Industrial Applications Requiring Total Sulfur – Nitrogen Monitoring

Best solution for monitoring refinery flare gas and subsequent sulfur dioxide (SO2) emissions as mandated by the EPA Rule 40 CFR 60, Subpart Ja

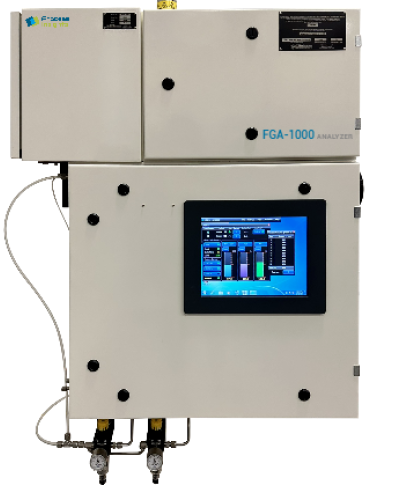

Our FGA-1000 is an online process analyzer utilizing patented Excimer UV Fluorescence (EUVF) Technology to measure Total Sulfur in a variety of applications such as monitoring refinery flare gas and subsequent sulfur dioxide (SO2) emissions as mandated by the EPA Rule 40 CFR 60, Subpart Ja.  The FGA-1000 has the highest dynamic measurement range of any commercially available analyzer, requiring only a single point calibration without the need for additional sample valves, calibration gases or system hardware. It provides complete TRS Data resulting in the total analysis of all sulfur compounds potentially present in flare gas streams, not just the analysis of a few selected sulfur compounds as with GC-type applications.  Certification or CGA (Cylinder Gas Audit) is seamlessly provided by the incorporated calibration switching configuration and corresponding software menus for easy compliance testing. In addition, the ATOM FGA-1000 does not require installation in an enclosed shelter.

KEY FEATURES

  • Designed for High Concentration Flare Gas Applications
  • Single Calibration/Single Range (0-50% and up to 100%)
  • Seamless Integration with GC for EPA Ja Rule Compliance
  • Outstanding Repeatability
  • 50ppm SD or ±2% of the measured value
  • 25ppm SD with 5-min averaging or ±2% of the measured value
  • High Linearity
  • ±2% of full scale (Dynamic Range Dependent)
  • Designed for outdoor installation and use in harsh environments as may be required by the refining, gas processing, and other oil and gas industries

Simplified Design Improve Reliability

Calibration and validation routines are seamlessly incorporated into our operation software. The analyzer has a very fast response time to process changes (within 1 cycle), ensuring proper process monitoring with fast-moving processes. The sample injection system design is simplified resulting in greater reliability and lower maintenance, for example, the sample valve only actuates once per cycle increasing lifetime. Finally, the analyzer results are insensitive to sample buildup or interference from oxygenates present in the sample stream.

Principle of Operation

The UV Fluorescence method is the most simple and practical low-level sulfur analytical technique. It has been widely used and proven over many years of use in industrial settings. This method involves the injection of a sample into a high-temperature oxidation furnace, converting all hydrocarbons into water (H20) and carbon dioxide (C02).  Total sulfur contained in molecular-bound hydrocarbon species is oxidized at temperatures in excess of 1000°C into sulfur dioxide (S02) by the reaction:   R-SH + O2 → SO2 + CO2 + H2O

The furnace effluent containing these combustion byproducts is directed into a detection chamber where it is excited by high-energy, short-wavelength emission from the excimer source. The UV photons from the excitation source, transfer energy into the SO2molecule and raise its energy level to create back to their lower energy ground state releasing the absorbed energy as a secondary emission known as fluorescence:   SO2 + hv → SO2* → SO2 + hv’

Fluorescence emission is optically filtered to remove undesired wavelengths from excitation source and background scatter within the detector chamber. Detection of filtered fluorescence emission is accomplished using a Photomultiplier Tube and amplified by proprietary high sensitivity electronics.

Graphical User Interface (GUI)

The SLA software incorporates a user-friendly Graphical User Interface (GUI) designed to be both intuitive and easy to use.  All aspects of analyzer operation are accessible from the Main toolbar utilizing drop-down menu screens. The home screen displays 3 user selectable digital readout and analog bar graphs updated in real-time from the analysis. Run Cycle Status and current timed events are also refreshed in real-time. Major system control elements are also incorporated in this home screen. The calibrate menu allows complete control of calibration and validation processes, including manual, auto calibration, and validation sequencing. Analytical results acquired during these events may be inspected at any time prior to subsequent calibrations.  All other menu screens such as Timed Events, Detector, Analog Output, Digital 1/0 and System Alarm Settings, allow the user to easily monitor or make changes to all aspects of analyzer control and operation. The GUI software also includes user setup and password security, as well as graphics plotting of real-time analysis data and display of historical settings.

The Analyzer Central Communication Ethernet Server Software allows an authorized user to access any analyzer on the facility network from an internal office or workstation. After a successful security login, the network will initiate communication to the selected instrument of choice. Once connected, the instrument can be operated and interfaced with, just as if the user was standing directly in front of the instrument. Instead of utilizing the analyzer touch screen, the remote connection keyboard and mouse are used for all interface requirements.

For a complete range of oxygen monitoring options, please contact us.

SERVICE | SALES | TRAINING

Phone:  +1 713-947-9591

Fax:  +1 713-947-7549

sales@cosaxentaur.com

service@cosaxentaur.com

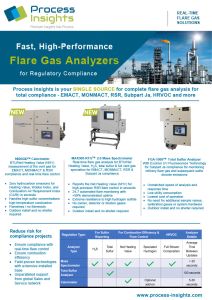

Fast and Versatile Innovative Flare Gas Measurement Solution for Total Sulfur

Process Insights_ATOM SGA-1000 Analyzer

APPLICATIONS

  • Process Streams
  • Flare Gas
  • Stack Gas
  • Refined Fuels
  • LPG
  • Natural Gas

Speed of Analysis and Response Time

FGA-1000 is specifically designed for high-speed analysis and fast response time. This feature enables more rapid, real-time measurements to be performed, allowing process events and changes to be monitored and quantified in a timely manner. Process variations and detail potentially obscured with slower responding analyzers, may be revealed, or become more apparent. The cycle time is completely user-selectable although a 1DO-second cycle time is standard.

Low Concentration Total Sulfur Analysis

FGA-1000 allows stable and accurate analysis at both high and low sulfur concentrations, even below 1 ppm, using the standard 100 second analysis cycle time. Any number of analyses up to 10 sequential results can be seamlessly averaged to provide a more consistent and reliable concentration measurement. In turn, this allows optimization of low range detection performance and analyzer response time for specific application requirements.
