MGA 1200CS CyberSecure Mass Spectrometer Gas Analyzer

Designed with IIoT in Mind, Comes with Standard Cybersecure Communication Options

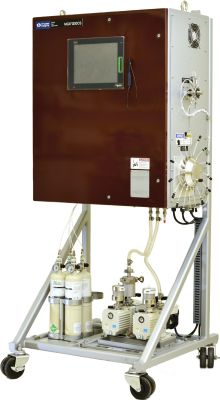

Our Extrel MGA™ 1200CS™ Mass Spectrometer Gas Analyzer advances the state-of-the-art in process mass spectrometry with the first CyberSecure PLC enabled mass spectrometer.  This process mass spectrometer is a fixed magnetic sector analyzer that provides rapid, accurate and stable real-time analysis of up to 16 gas components in multiple gas streams. It’s the fastest process mass spec on the market.  With the ability to interface to process streams with capability of driving both rotary and solenoid manifolds, it delivers unmatched stability provides best-in industry drift specification and longest intervals for calibration.  Only one single analyzer to calibrate and maintain.

Designed with IIoT in mind, the control architecture is based on the Modicon M580 ePAC programmed with EcoStruxure Control Expert software. The Magelis touch-screen HMI provides full support for secure role-based access permissions and stored audit trails for end-to-end cybersecurity.

    The hazardous area compliant HMI for the MGA 1200CS Mass Spectrometer Gas Analyzer provides full access to system configuration, real-time data, stored data, system status and diagnostics. The native ethernet control architecture provides industrial connectivity for SCADA, DCS, SIS and Data Historians.

    • Superior stability, sensitivity, resolution and ruggedness
    • Only one single analyzer to calibrate and maintain – reduces maintenance costs
    • Rapid analysis time – multiple components in 1 second
    • Rugged cybersecure communication options standard
    • Hazardous area compatible touchscreen HMI provides configuration and interrogation without opening the door or requiring a PC
    • Role-based access permission standard
    • Non scanning ultra-fast parallel processing of spectra
    • Non-scanning – simultaneous analysis from multiple Faraday detectors providing real-time analysis
    • Measures up to 16 components from mid-ppm to 100% for as many as 100 sampling sites
    • Optional validation assistance for 21 CFR Part 11 compliance
    • Continuous and instantaneous analysis
    • Analyze up to 128 streams, including both process and calibration gases, in user defined order
    • Standard communications: RS-232 Serial, Modbus® RTU & TCP/IP
    • Optional communications:  Analog (0-10 Vdc, 4-20 mA), OPC®, Profibus
    • Scalable sampling systems and calibration manifolds available
    • NEMA 4X, IP66

    SOFTWARE POWERING YOUR ANALYZER

    Prime™ Software is used by the MGA 1200CS Mass Spectrometer Gas Analyzer or process monitoring of multi-component gas streams. A Windows® based graphical interface provides the user with capabilities such as real-time analysis, automatic calibration, trending, sample system control and DCS communications. The Prime software is delivered with a data station.

    • Delivers real-time displays:  calibration, trending, and sample system control
    • Formats include gauge, tabular or multi-stream trending. Up to 96 user-defined elements can be displayed in real- time on six pages.
      • MGA electrometer outputs
      • MGA compositional analysis
      • User-defined calculations and alarms
      • User-supplied analog and digital inputs

    OUR GLOBAL SOLUTIONS DELIVER

    • Improved reliability
    • Low cost of ownership
    • Meet compliance requirements
    • Backed by global service and support
