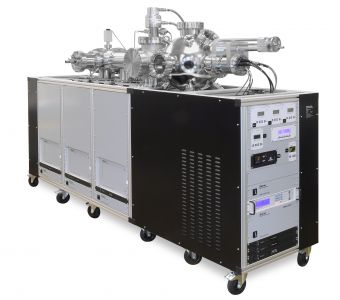

MS/MS Systems

Quadrupole Mass Spectrometer Systems

Turnkey Quadrupole Mass Spectrometer Systems

Powerful Mass Spectrometers for Your Application

For experiments that require more structural component information than a simple fragmentation pattern, we offer our EXTREL™ MS/MS Systems. These systems are also ideal for applications that require in-depth identification and separation of isomers.  Our flange mounted TMAX MS/MS System can function alone as the base system, or it can be used to add MS/MS capability to an already existing system.


  • Atmospheric Chemistry Studies
  • Combustion Analysis
  • Organic Clusters Analysis and Deposition
  • Peptide and Protein Analysis

The Standard TMAX MS/MS System includes:

  • CF 150 DN Mounting Flange
  • Control Electronics
  • Detector
  • Electron Ionization (El) Source
  • Q1 Resolving Quadrupole
  • Q2 Collision Induced Dissociation (CID) Collision Cell
  • Q3 Resolving Quadrupole
  • Software

The flange mounted TMAX MS/MS System is a true research instrument that offers a wide range of options, including the ability to connect to multiple ionization sources using different ionization techniques and to perform analysis and deposition. This system is available in mass ranges from 1-120 amu up to 25-4000 amu.

For those that are designing and implementing their own custom systems, we also offer various MS/MS components. Along with the MAX MS/MS System and MS/MS Components, we also offer a complete turnkey research MS/MS/MS System. You can choose from one of our standard systems, or we will partner with you to build a custom system designed specifically for your application.

  • Collision Cells
  • EI, Chemical Ionization (CI) and Atmospheric Ionization (API)
  • Ion Guides
  • Ion Molecule Reaction Sources
  • MS/MS Probes


    The MS/MS systems are highly specialized instruments that are used in a variety of industries for targeted analysis of complex samples. Some of the common industries that use MS/MS systems include:

    • Pharmaceutical Industry: Used in the pharmaceutical industry for the analysis of drug compounds, metabolites, and impurities. They are used in drug discovery and development, quality control, and safety testing.
    • Food and Beverage Industry: Used in the food and beverage industry for the analysis of contaminants, additives, and ingredients in food and beverages. They are used to ensure food safety and quality.
    • Environmental Testing: Used in environmental testing to analyze complex samples such as water, soil, and air for contaminants and pollutants. They are used in environmental monitoring and remediation.
    • Academic Research: Used in academic research for the analysis of complex samples in fields such as chemistry, biology, and materials science. They are used in basic research and applied research.
    To Top

    Delivers exceptional resolution and
    repeatable accuracy

    Process Insights_Extrel Complete MS Systems

    Need help? Complete our Mass Spectrometer
    Application Questionnaire.


    Americas +1 412.967.5754
    EMEA +49 69 20436910
    China/APAC +86 400 086 0106

        Our quadrupole Mass Spectrometers for Industrial Applications

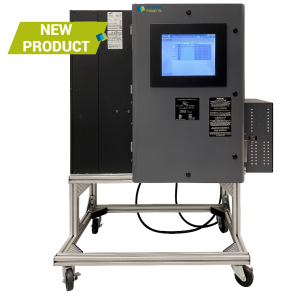

        MAX300-RTG™ 2.0

        EXTREL™ Industrial Process Quadrupole Mass Spectrometer
        max300-rtg 2.0 mass spectrometer


        EXTREL™ Air & Environmental Quadrupole Mass Spectrometer
        Process InisightsExtrel MAX300-AIR


        EXTREL™ Bioreactor & Fermentation Quadrupole Mass Spectrometer
        Process Insights_Extrel MAX300-BIO BIOREACTOR GAS ANALYZER


        EXTREL™ Lab Quadrupole Mass Spectrometer
        Process Insights_Extrel MAX300-CAT


        EXTREL™ Lab Quadrupole Mass Spectrometer
        Process Insights_Extrel MAX300-LG

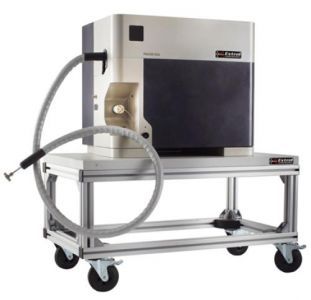

        EXTREL™ Evolved Gas Quadrupole Mass Spectrometer
        Process Insights_Extrel MAX300-EGA Evolved Gas Analyzer


        EXTREL™ Flange Mounted Quadrupole Mass Spectrometer
        Process Insights_Extrel MAX-QMS FLANGE MOUNTED SYSTEM

        Lamp Analyzer

        EXTREL™ Quadrupole Mass Spectrometer
        Process Insights_Extrel Lamp-Analyzer

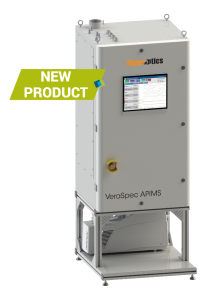

        VeraSpec™ APIMS

        EXTREL™ Atmospheric Pressure Ionization Mass Spectrometer

        VeraSpec HRQ™

        EXTREL™ Quadrupole Mass Spectrometers System
        Process Insights_Extrel VeraSpec-HRQ-gas analyer

        VeraSpec™ Molecular Beam & Plasma Analysis System

        EXTREL™ Quadrupole Mass Spectrometer System
        VeraSpec™ Molecular Beam and Plasma Analysis System


        EXTREL™ Residual Gas Quadrupole Mass Spectrometer
        VeraSpec™ Molecular Beam and Plasma Analysis System

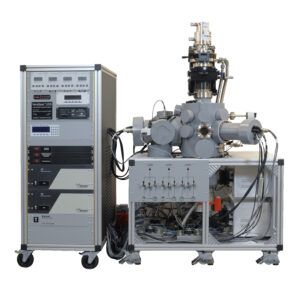

        Custom Systems
