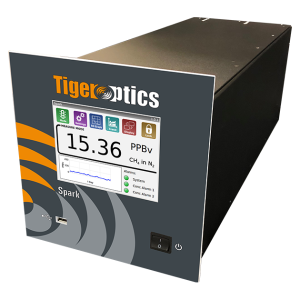

SPARK CH4 CRDS Laser-Based Analyzer
MONITOR METHANE IN CYLINDER FILLING, BULK DELIVERY AND DISTRIBUTION TRANSFER POINTS RELIABLY
Our TIGER OPTICS™ Spark™ CH4 gas analyzer for Trace-Level Methane Detection Analysis is available at a popular price for a host of applications, from process control to quality and safety assurance in Air Separation Plants. Other applications include monitoring of cylinder filling, bulk delivery and distribution transfer points, as well as welding, medical, industrial and high-purity gas production, and more. Sensitivity as low as 6 ppb with full range measurement as high as 80 ppm CH4 makes the Spark CH4 an ideal solution for these applications.
Say goodbye to cumbersome, complex, costly and labor-intensive mid-20th century technology. Gone is the need for calibration, spare parts, limited measurement ranges, and worries about drift and downtime usually associated with NDIRs. And without the need for H2 fuel gas and with plug-and-play installation within minutes, the Spark CH4 is a faster and safer alternative to FIDs. Plus, it’s a joy to start up and to operate.
DESIGNED FOR TRACE METHANE ANALYSIS, THE AFFORDABLE SPARK CH4 OFFERS:
- Powerful, proven Cavity Ring-Down Spectroscopy (CRDS) technology
- Drift-free measurement
- Increased laboratory safety without the need for fuel gas
- Self-tuning and auto-calibration
- Extremely low cost of ownership
- Ethernet, 4–20 mA and RS-232 connectivity
- Fast response with low gas consumption
- Methane analysis: 6 ppb to 50 ppm (in O2)
OPTIONAL ADD-ONS
- Speed+
- Dew Point Measurement
- Linear Fit Point
- Annual Performance Verification
Applications
DETECTION CAPABILITY
| Detection and Matrix | Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CH4 in N2 | 0 – 80 ppm | 7.5 ppb | 2.5 ppb |
| CH4 in O2 | 0 – 50 ppm | 6 ppb | 2.0 ppb |
| CH4 in Clean Dry Air (CDA) | 0 – 80 ppm | 7.5 ppb | 2.5 ppb |
| CH4 in Ar | 0 – 70 ppm | 6.5 ppb | 2.2 ppb |
| CH4 in He | 0 – 50 ppm | 6 ppb | 2.0 ppb |
| CH4 in H2 | 0 – 80 ppm | 7.5 ppb | 2.5 ppb |
SPECIFICATIONS
| Performance | |
|---|---|
| Operating range | See Detection Capability table |
| Detection Limit (LDL, 3σ/24h) | See Detection Capability table |
| Precision (1σ, greater of) | ± 0.75% or 1/3 of LDL |
| Accuracy (greater of) | ± 4% or LDL |
| Speed of response | < 1 minute to 90% |
| Environmental conditions | 10°C to 40°C, 30% to 80% RH (non-condensing) |
| Storage temperature | -10°C to 50°C |
| Gas Handling System and Conditions | |
| Wetted materials | 316L stainless steel, 10 Ra surface finish |
| Gas connections | 1/4″ male VCR inlet and outlet |
| Inlet pressure | 10 – 125 psig (1.7 – 9.6 bar) |
| Flow rate | ∼0.7 slpm (in N2), gas-dependent |
| Sample gases | Most inert, toxic, and passive matrices |
| Gas temperature | Up to 60°C |
| Dimensions, H x W x D | |
| Standard sensor | 8.73″ x 8.57″ x 23.6″ (222 mm x 218 mm x 599 mm) |
| Sensor rack (fits up to two sensors) | 8.73″ x 19.0″ x 23.6″ (222 mm x 483 mm x 599 mm) |
| Weight | |
| Standard sensor | 32 lbs (14.5 kg) |
| Electrical and Interfaces | |
| Platform | Max series analyzer |
| Alarm indicators | 2 user programmable, 1 system fault, Form C relays |
| Power requirements | 90 – 240 VAC, 50/60 Hz |
| Power consumption | 40 Watts max. |
| Signal output | Isolated 4–20 mA per sensor |
| User interfaces | 5.7″ LCD touch screen, 10/100 Base-T Ethernet |
| USB, RS-232, RS-485, Modbus TCP (optional) | |
| Data storage | Internal and external flash drive |
| Certification | CE Mark |
| Patents | |
| U.S. Patent #7,277,177 | |
SPECIFICATIONS
| Spark CH4 PERFORMANCE, CH4 | Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CO2 in N2 | 0 – 80 ppm | 7.5 ppb | 2.5 ppb |
| CO2 in O2 | 0 – 50 ppm | 6 ppb | 2.0 ppb |
| CO2 in Clean Dry Air (CDA) | 0 – 80 ppm | 7.5 ppb | 2.5 ppb |
| CO2 in Ar | 0 – 70 ppm | 6.5 ppb | 2.2 ppb |
| CO2 in He | 0 – 50 ppm | 6 ppb | 2.0 ppb |
| CO2 in H2 | 0 – 80 ppm | 7.5 ppb | 2.5 ppb |
| SPARK+ CO PERFORMANCE,CO | Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CO2 in N2 | 0 – 2000 ppm | 120 ppb | 40 ppb |
| CO2 in O2 | 0 – 1800 ppm | 110 ppb | 40 ppb |
| CO2 in Clean Dry Air (CDA) | 0 – 2000 ppm | 120 ppb | 40 ppb |
| CO2 in Ar | 0 – 1600 ppm | 100 ppb | 35 ppb |
| CO2 in He | 0 – 1800 ppm | 110 ppb | 40 ppb |
| CO2 in H2 | 0 – 2500 ppm | 150 ppb | 50 ppb |
|
SPARK+ CO PERFORMANCE WITH TURBO MODE PERFORMANCE CO |
Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CO2 in N2 | 0 – 2000 ppm | 360 ppb | 120 ppb |
| CO2 in O2 | 0 – 1800 ppm | 330 ppb | 110 ppb |
| CO2 in Clean Dry Air (CDA) | 0 – 2000 ppm | 360 ppb | 120 ppb |
| CO2 in Ar | 0 – 1600 ppm | 300 ppb | 100 ppb |
| CO2 in He | 0 – 1800 ppm | 330 ppb | 110 ppb |
| CO2 in H2 | 0 – 2500 ppm | 450 ppb | 150 ppb |
| SPARK C2H2 PERFORMANCE C2H2 | Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CO2 in N2 | 0 – 80 ppm | 8 ppb | 3 ppb |
| CO2 in O2 | 0 – 70 ppm | 7 ppb | 2.5 ppb |
| CO2 in Clean Dry Air (CDA) | 0 – 80 ppm | 8 ppb | 3 ppb |
| CO2 in Ar | 0 – 80 ppm | 8 ppb | 3 ppb |
| SPARK CO2 PERFORMANCE,CO2 | Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CO2 in N2 | 0 – 1500 ppm | 250 ppb | 80 ppb |
| CO2 in O2 | 0 – 1200 ppm | 220 ppb | 75 ppb |
| CO2 in Clean Dry Air (CDA) | 0 – 1500 ppm | 250 ppb | 80 ppb |
| CO2 in Ar | 0 – 1200 ppm | 220 ppb | 75 ppb |
| CO2 in He | 0 – 1200 ppm | 220 ppb | 75 ppb |
| CO2 in H2 | 0 – 2000 ppm | 400 ppb | 140 ppb |
We also offer a new CRDS analyzer performance upgrade. Implementing our new intelligent dynamic data processing, the Speed+™ Analyzer Performance Upgrade Software adjusts your analyzer’s response automatically and in real-time to deliver the best performance. Benefits of Speed+ for your operations include real-time process control to ensure quality, as well as faster throughput and increased capacity to improve efficiency and profitability.
