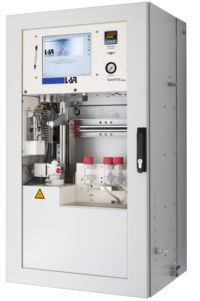

Introducing the QuickTONultra Water Analyzer
Our LAR™ QuickTONultra™ TON water quality analyzer is the ultimate solution for determining total nitrogen bound (TNb) in wastewater and process water applications. With its modular design, this analyzer offers flexibility and ease of use.
Key Features and Benefits
The QuickTONultra features a catalyst-free ceramic oven that reliably dissolves all nitrogen bonds at 1,200°C, enabling complete analysis of samples. This ensures accurate measurements of organic and inorganic nitrogen compounds, even in challenging water samples with high levels of coarse material.
Safety and Flexibility
Despite the high temperatures used, the QuickTONultra TON water quality analyzer guarantees absolute safety in all locations. The analyzer can be delivered with various housings to suit different environments, including high-corrosive areas and ex-zones.
Compliance and Accuracy
The QuickTONultra water analyzer meets international standards, including EN 12260:2003 and ISO/TR 11905-2:1997. It can handle salt concentrations up to 10 g/l and offers an optional high-salt feature for concentrations up to 300 g/l.
Easy Operation and Control
The analyzer features a 10.4-inch touch screen for easy operation. Additionally, it can be controlled remotely using a PC connected to your network.
Advanced Technology
The QuickTONultra uses chemiluminescence technology to measure TNb levels. This involves the reaction of nitric oxide and ozone to produce excited-state nitrogen dioxide, which emits light proportional to the TNb concentration.
Customization Options
The analyzer can be easily configured to measure additional parameters, such as Total Oxygen Demand (TOD) and Total Organic Carbon (TOC).
INDUSTRIES
- Municipal Water Treatment Plants: Used to monitor the quality of drinking water in municipal water treatment plants.
- Industrial Water Treatment: Industries such as power plants, chemical manufacturing, and oil refineries use large quantities of water in their processes.
- Food and Beverage Production: Used to monitor the quality of water used in food and beverage production, ensuring that the water is safe for human consumption and that it meets industry standards.
- Aquaculture: Used in aquaculture to monitor the quality of water in fish farms and other aquatic environments.
- Swimming Pools and Spas: Used to monitor the quality of water in swimming pools and spas, ensuring that the water is safe for human use and meets industry standards.
FEATURES & BENEFITS
- Measurement range: 0 – 200 mg/l N
- Fast Response Time: 1 – 2 minutes
- Highest combustion temperature (1,200°C) available on the market
- Measurement of complete samples incl. solids/ particles
- Excellent detection value from ammonia and nitrate nitrogen
- High salt concentrations possible
- Catalyst-free technique
- No filtration necessary
- No memory effects
- According to DIN EN 12260:2003 and ISO/TR 11905-2:1997
OPTIONS
- Flow Sampler
- Multi-stream measurement for up to 6 sample streams
- Combination with COD and TOC detection
HOUSINGS
- IP54 (Standard)
- NEMA 4X
- ATEX Zone I
- ATEX Zone II
- IECEx
Applications
- Water Influent
- Water Effluent
- Discharge Control
- Industrial Wastewater
- De-Icing Water
- Drinking Water
- Groundwater
- Process Water
- High Salt Concentrations
- Cooling Water
