Formaldehyde (CH2O) is a key impurity in fuel cell hydrogen, where it is responsible for the degradation of the proton exchange membrane, adversely affecting performance. We deliver a powerful analytical tool for the measurement of trace CH2O for diverse applications. The low detection limit allows monitoring for compliance with SAE J2719, ISO 14687 or similar purity standards and protects fuel cell electric vehicles (FCEVs) from damage.

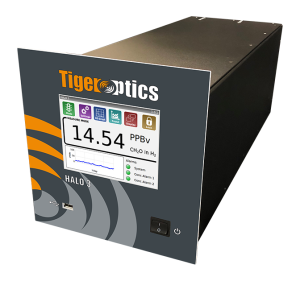

Based on powerful Cavity Ring-Down Spectroscopy (CRDS), with a proprietary laser lock cell, the TIGER OPTICS™ HALO™ 3 CH2O is free of drift, guaranteeing consistent and reliable trace CH2O detection in nitrogen, hydrogen and other inert gases. Highly specific to the target molecule, CRDS also prevents cross-interferences from distorting your measurement. Plus, there is no need to perform costly and time-consuming zero and span calibrations, saving both time and money with continuous, online service.
The HALO 3 CH2O gives you unsurpassed speed of response and ease of use. In sum, the HALO 3 analyzer serves a range of applications where trace gas measurement is extremely critical, such as sensor validation, gas standard preparation, and fuel cell hydrogen purity analysis.
Key Benefits of the HALO™ 3 CH₂O Analyzer
- Ultra-low detection limits for formaldehyde (CH₂O)
- Fully compliant with SAE J2719, ISO 14687, and similar hydrogen purity standards
- Optimized for fuel cell hydrogen, gas standard preparation, and sensor validation
- No zero/span calibration required — reduces maintenance and operational costs
- Real-time, online measurement for continuous purity monitoring
- Fast installation, easy-to-use interface, and compact design
- Reliable performance with no drift or cross-interference
APPLICATIONS
DETECTION CAPABILITY
| Detection and Matrix | Range | LDL (3σ) | Precision (1σ) @ zero |
|---|---|---|---|
| CH2O in N2 | 0 – 40 ppm | 5 ppb | 1.7 ppb |
| CH2O in H2 | 0 – 40 ppm | 6 ppb | 2.0 ppb |
SPECIFICATIONS
| Performance | |
|---|---|
| Operating range | See Detection Capability table |
| Detection limit (LDL, 3σ/24h) | See Detection Capability table |
| Precision (1σ, greater of) | ± 0.75% or 1/3 of LDL |
| Accuracy (greater of) | ± 4% or LDL |
| Speed of response | < 3 minutes to 95% |
| Environmental conditions | 10°C to 40°C, 30% to 80% RH (non-condensing) |
| Storage temperature | -10°C to 50°C |
| Gas Handling System and Conditions | |
| Wetted materials | 316L stainless steel, 10 Ra surface finish |
| Gas connections | 1/4″ male VCR inlet and outlet |
| Leak tested to | 1 x 10-9 mbar l / sec |
| Inlet pressure | 10 – 125 psig (1.7 – 9.6 bara) |
| Flow rate | <1 slpm |
| Sample gases | Nitrogen and hydrogen |
| Gas temperature | Up to 60°C |
| Dimensions, H x W x D | |
| Standard sensor | 8.73″ x 8.57″ x 23.6″ (222 mm x 218 mm x 599 mm) |
| Sensor rack (fits up to two sensors) | 8.73″ x 19.0″ x 23.6″ (222 mm x 483 mm x 599 mm) |
| Weight | |
| Standard sensor | 34 lbs (15.4 kg) |
| Electrical and Interfaces | |
| Platform | Max series analyzer |
| Alarm indicators | 2 user programmable, 1 system fault, Form C relays |
| Power requirements | 90 − 240 VAC, 50/60 Hz |
| Power consumption | 40 Watts max. |
| Signal output | Isolated 4−20 mA per sensor |
| User interfaces | 5.7” LCD touchscreen, 10/100 Base-T Ethernet |
| USB, RS-232, RS-485, Modbus TCP (optional) | |
| Data storage | Internal or external flash drive |
| Certification | CE Mark |
| Patents | |
| U.S. Patent #7,277,177 | |
